YT210-3/4” and 1” Valve

Brand: INOVATO

Product Model: YT210-3/4”,YT210-1”

Size: 3/4″ and 1”valve with female thread inlet / outlet, with flow control

Description: The INOVATO solenoid valve is a hydraulically driven diaphragm type hydraulic control valve. It can be turned on and off with electrical signal

*ALL INOVATO valves are 100% water-tested to ensure reliable operation once installed

more about usGet a free quote

Models

YT210-3/4”Valve = Inlet & Outlet size: 3/4inch, DN20

YT210-1”Valve = Inlet & Outlet size: 1inch, DN25

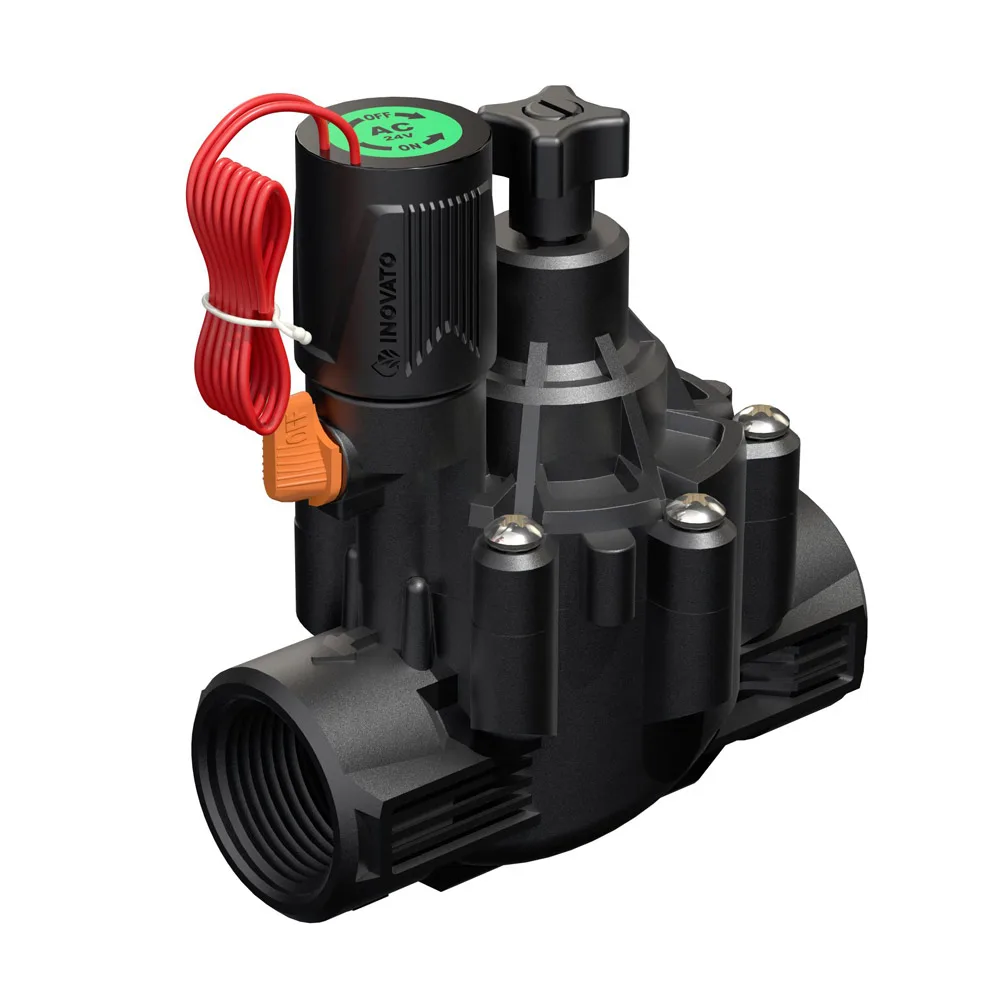

YT210-3/4″ Valve

Female Thread, NPT/BSPT/Quick Connector

L*W*H: 114.1*83*129.8 mm

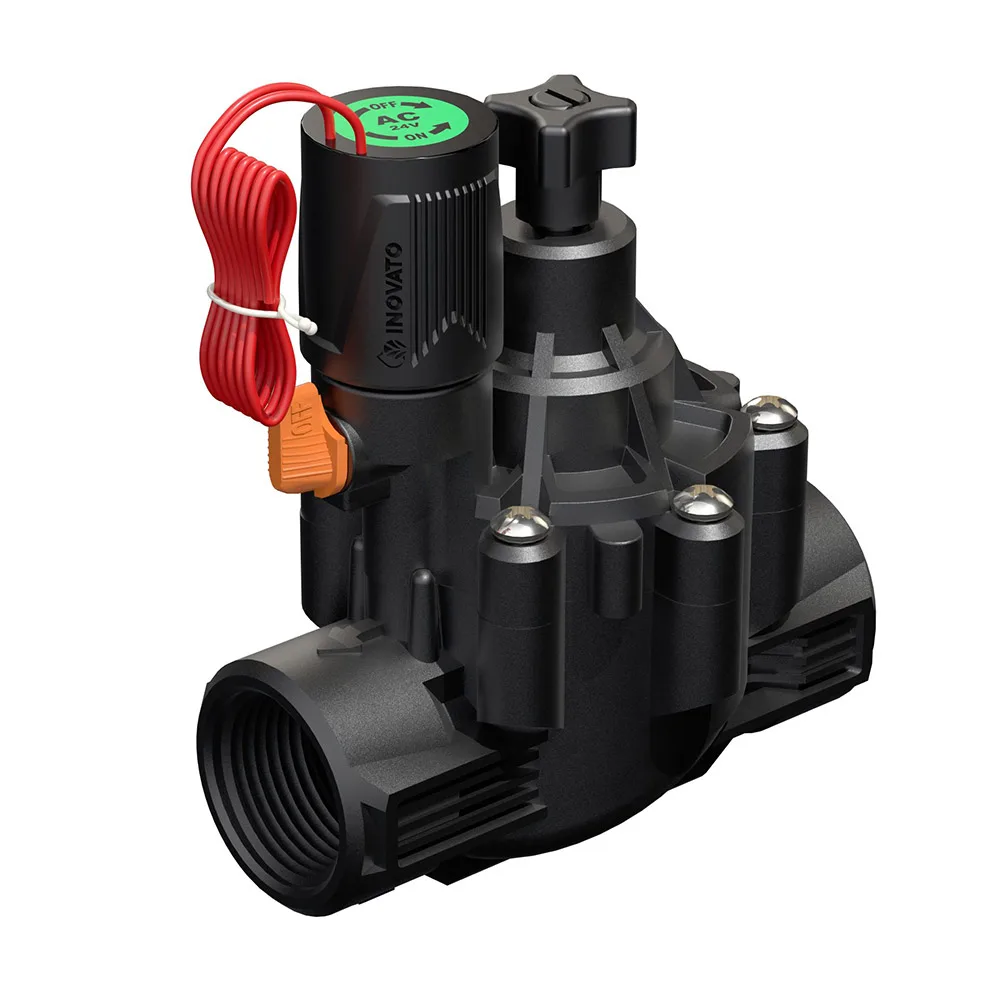

YT210-1″ Valve

Female Thread, NPT/BSPT/Quick Connector

L*W*H: 114.1*83*129.8 mm

Advanced Features

Flow control

SNL-ADJ pressure regulator capable

PRF filter regulator capable

Factory-Installed Options

LS: Valve without solenoid

DC: DC-Latching Solenoid for battery-operated controllers

Solenoid Specifications

Solenoid Coil: AC Solenoid, DC-Latching Solenoid(Pulse)

Mechanical Solenoid:

AC/DC Associated Mechanical Solenoid

DC-Latching Mechanical Solenoid(Pulse)

Operating Specifications

Flow: 2.8 to 33 m³/h; 12.57 to 148 gal/min

Recommended pressure range: 0.069 to 1 MPa, 10 to 145 PSI

Temperature rating: 60°C; 140°F

Warranty period: 2 years

Typical Applications

Residential

Commercial

Reclaimed water

Pressure regulation

Low-pressure systems
