YT210-1-1/2” and 2” Valve

Brand: INOVATO

Product Model: YT210-1-1/2”,YT210-2”

Size: 1-1/2″ and 2”valve with female thread inlet / outlet, with flow control

Description: The INOVATO solenoid valve is a hydraulically driven diaphragm type hydraulic control valve. It can be turned on and off with electrical signal

*ALL INOVATO valves are 100% water-tested to ensure reliable operation once installed

more about usGet a free quote

Models

YT210-1-1/2”Valve = Inlet & Outlet size: 1-1/2inch, DN40

YT210-2”Valve = Inlet & Outlet size: 2inch, DN50

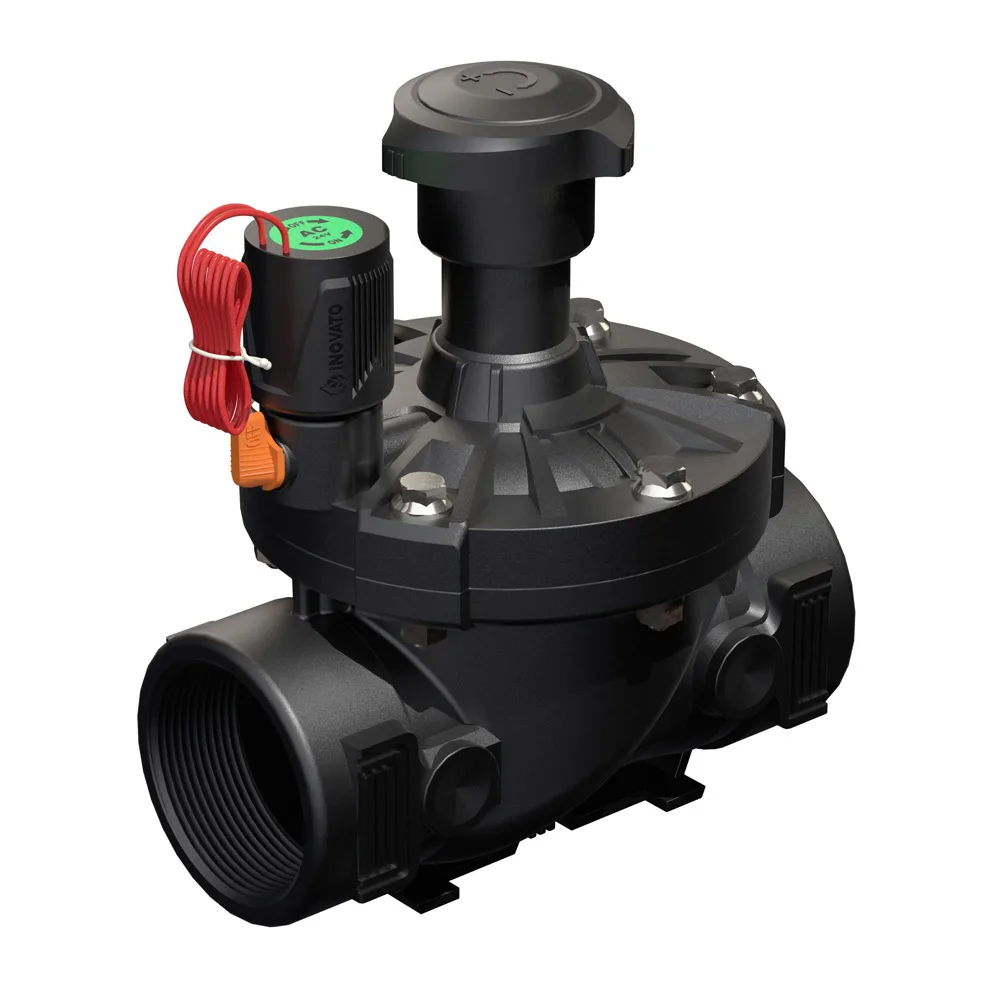

YT210-1-1/2″ Valve

Female Thread, NPT/BSPT/Flanged

L*W*H: 165*129.4*188.6mm

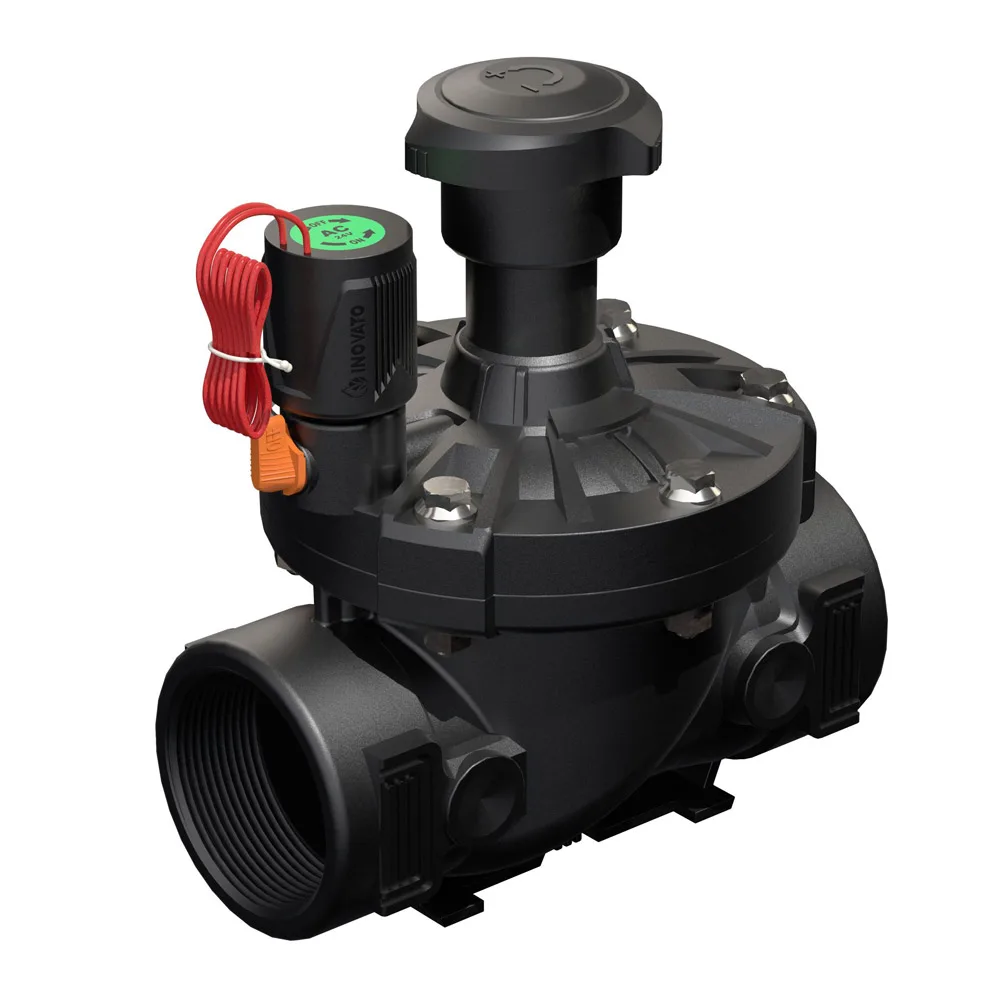

YT210-2″ Valve

Female Thread, NPT/BSPT/Flanged

L*W*H: 170.2*129.4*193.95mm

Advanced Features

Flow control: none

SNL-ADJ capable

Factory-Installed Options

LS: Valve without solenoid

DC: DC-Latching Solenoid for battery-operated controllers

Solenoid Specifications

Solenoid Coil: AC Solenoid, DC-Latching Solenoid(Pulse)

Mechanical Solenoid:

AC/DC Associated Mechanical Solenoid

DC-Latching Mechanical Solenoid(Pulse)

Solenoid Specifications

Solenoid Coil: AC Solenoid, DC-Latching Solenoid(Pulse)

Mechanical Solenoid:

AC/DC Associated Mechanical Solenoid

DC-Latching Mechanical Solenoid(Pulse)

Typical Applications

Residential

Pressure regulation

Low-pressure systems
