Models
SF12 = 12″ pop-up (no side inlet)
SF12-SI = 12″ pop-up with side inlet
-

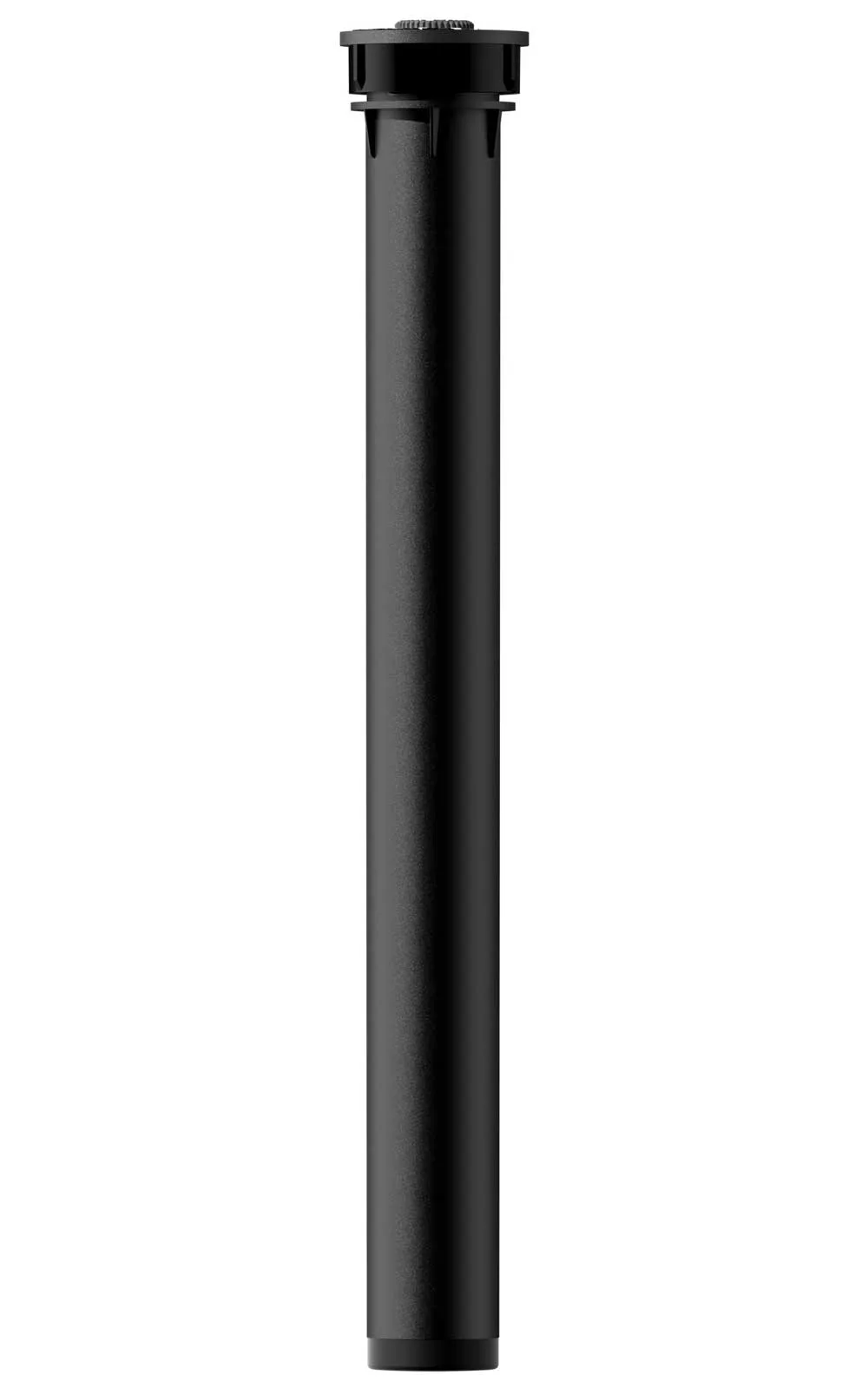

SF12
SF Sprinkler Body, 12″ pop-up with 1/2″inlet, without side inlet, accepts female thread nozzles -
SF12-SI
SF Sprinkler Body, 12″ pop-up with 1/2″inlet, with side inlet, accepts female thread nozzles
Dimensions
Overall height: 41cm
Pop up height: 30cm
Exprosure diameter: 5.7cm
Inlet size: 1/2″female thread
without/with side inlet
Features
Stronger material makes the body for years of reliable performance
Constructed of durable materials including corrosion resistant stainless steel
Pressure-activated wiper seal prevents excessive flow-by and water waste and keeps debris from entering upon retraction
Male threaded riser to accept all lNOVATO female nozzles
Operating Specifications
Optimum working pressure: 2.1 bar
Connection: 1/2″female thread
Factory Installed Options
FN nozzles, RF nozzles
Flush plug
Reclaimed water lD cap
Drain check valve: 7.5cm, 10cm, 15cm, 30cm models (up to 3m of elevation)
Pressure regulated: 10cm, 15cm, 30cm
